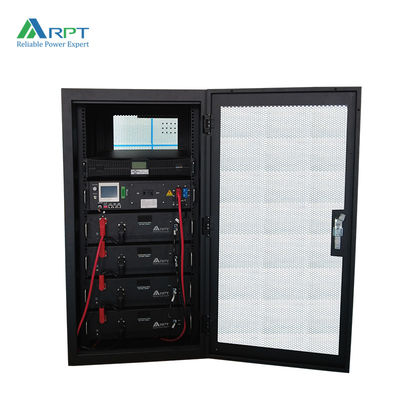

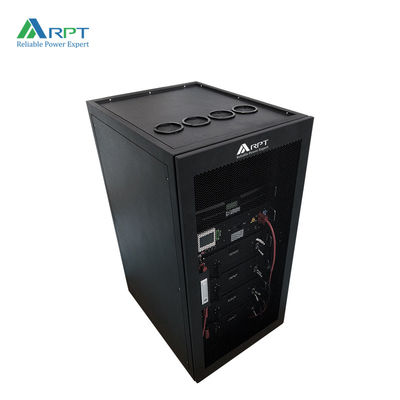

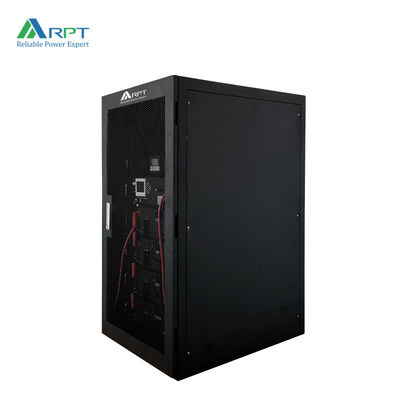

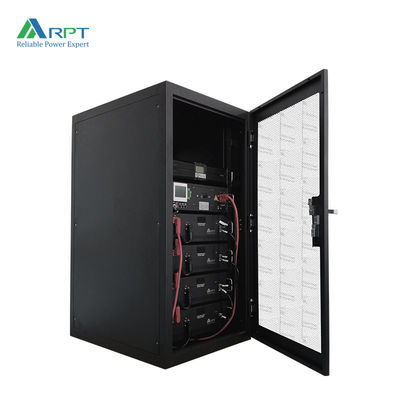

High Voltage UPS Battery CAN RS485 Lifepo4 Ups Battery 192V Series

High Voltage UPS Battery CAN RS485 Lifepo4 Ups Battery 192V Series

Brand Name: RPT
Price: Negotiable
Payment Terms: L/C,T/T,etc.
Detail Information
Place of Origin:
China
Packaging Details:
standard packing, as customer demands
Highlight:

rs485 lifepo4 ups battery

,

lifepo4 ups battery 192v series

,

can ups battery lifepo4

Product Description

LiFePO4 High Volatge UPS Battery Energy Storage System 192V Series



High voltage series is lithium iron phosphate battery energy storage cabinet,which is designed for high voltage UPS with 100V-600V,the whole system consists of battery racks and CBMS,each battery rack integrates with intelligent BMU inside.And the system has obvious advantages on safety,cycle life,energy density fast charging,temperature range and environmental protection RPT is committed to providing safe, stable and reliable power supply for UPS system.

Product Advantages

  • LFP (lithium iron phosphate) cell to ensure the highest safety,higher energy density, longer cycle life, wide temperature range.
  • Use CBMS-BMU design,protect voltage,current,temperature in whole operation.
  • Supports CAN and RS485 communicate with UPS or PC.
  • LCD display shows the battery information (optional).
  • Compact modular design for maximum capacity flexibility, minimize installation time and cost.
  • Can customize the battery system with neutral line



Parameter

  • High voltage LiFePO4 battery energy storage system with safe and reliable power supply



Items

LFP 192V 50Ah

LFP 192V 100Ah

Nominal Voltage

192V

192V

Nominal Capacity

50Ah

100Ah

Stored Energy

9600Wh

19200Wh

Dimension(L*W*H)

600mm*800mm*1200mm

Recommended Charge Mode

CC-CV-floating charge
