IP20 Battery Storage Solutions 600V LiFePO4 Battery UPS

Brand Name:	RPT
MOQ:	1
Price:	Negotiable
Payment Terms:	L/C,T/T,etc.
Supply Ability:	100000

Detail Information

Product Description

Detail Information

Place of Origin:

China

Packaging Details:

standard packing, as customer demands

Highlight:

ip20 battery storage solutions

600v lifepo4 battery ups

battery storage solutions 600v

Product Description

LiFePO4 Battery Energy Storage Solutions High Volatge UPS 100V-600V LiFePO4 Battery Energy Storage Solutions High Volatg

RPT provide LiFePO4 battery energy storage solutions for UPS,with good compatibility and safe long cycle life. The battery system consists of a three-stage structure;The module-level management system BMU is integrated in the battery module, which is responsible for collecting the cell voltage, module temperature, battery equalization communicate with the upper management system; cabinet-level management system is CBMS, responsible for battery current detection, data collection and analysis;.Alarm and protection control, communication with upper and lower levels; master control GBMS is responsible for data analysis, communication with lower-level systems, communication with UPS.

Product Advantages

Parameter

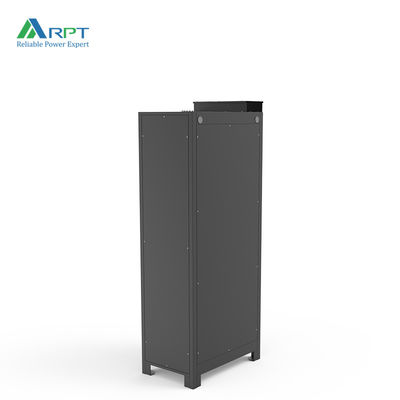

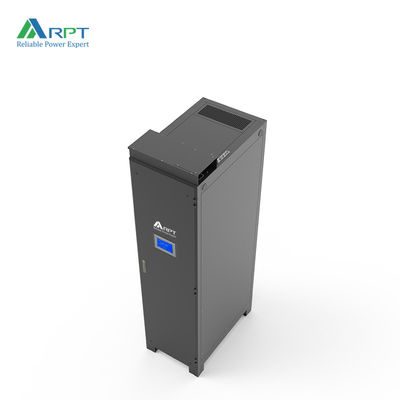

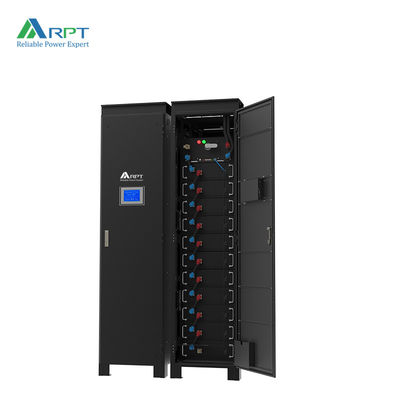

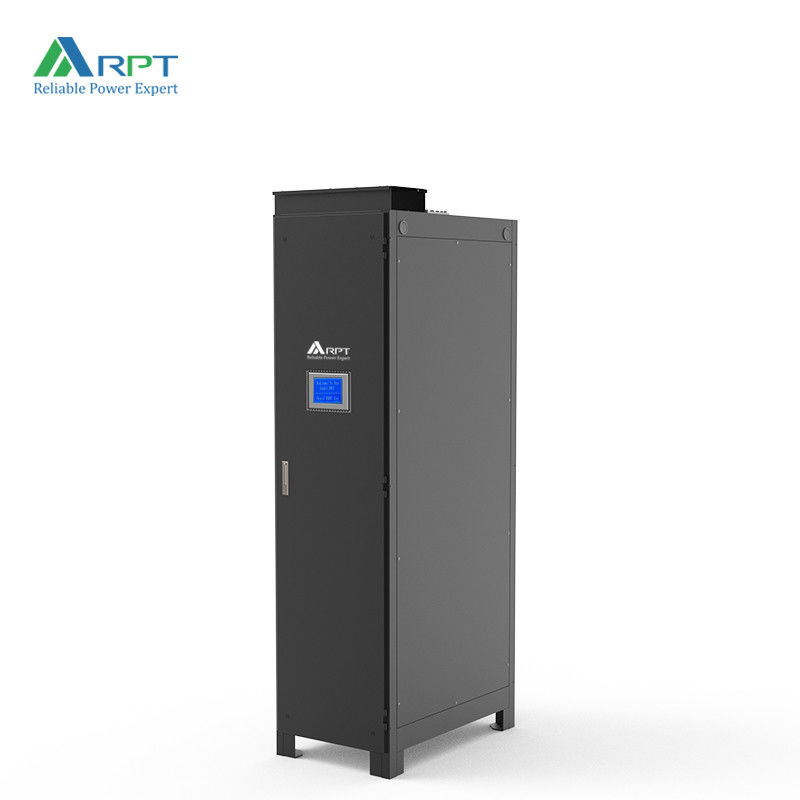

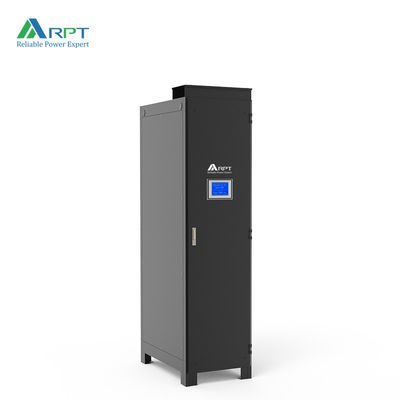

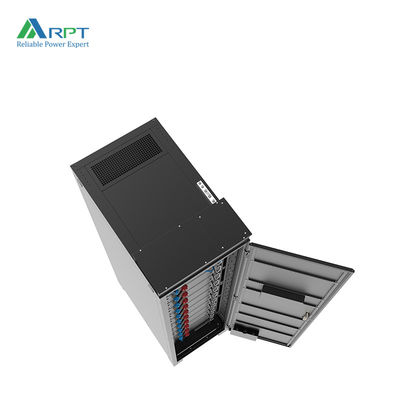

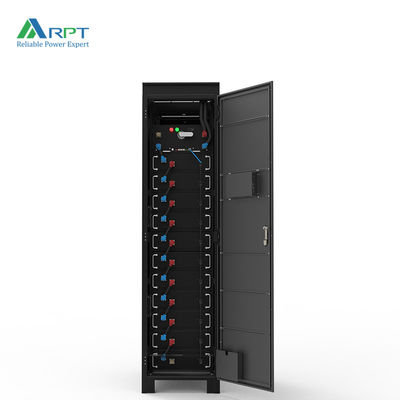

High voltage LiFePO4 battery energy storage cabinet

Model	Rated Voltage	Rated Capacity	Dimension (WDH)	Maximum Continuous Discharge Current	Standard Charging Voltage Range	Operating temperature	Recommended Charge Method	Cut-Off Voltage	Protection Class
192V50AH	192V	50Ah	600mm1000mm1200mm	50A	207V~210V	Charging: 0℃~55℃ Discharging-20℃~55℃	CC: 0.2C to 210V CV:210V Floating: 207V	168V~171V	IP20
192V100AH	192V	100Ah	600mm800mm1200mm	100A	207V~210V	Charging: 0℃~55℃ Discharging-20℃~55℃	CC: 0.2C to 210V CV:210V Floating: 207V	168V~171V	IP20
192V200	192V	200AH	800mm850mm1500mm	200A	207V~210V	Charging: 0℃~55℃ Discharging-20℃~55℃	CC: 0.2C to 210V CV:210V Floating: 207V	168V~171V	IP20
384V100	384v	100AH	600mm800mm2000mm	200A	414V~420V	Charging: 0℃~55℃ Charging: -20℃~55℃	CC: 0.2C to 420V CV:414V Floating: 414V	338V	IP20
512v200	512V	200AH	600mm1000mm2800mm	200A	544V~552V	Charging: 0℃~55℃ Discharging-20℃~55℃	CC: 0.2C to 552V CV:552V Floating: 544V	448V	IP20

Remark: the dimension and the weight will be subject to the datasheet provided by RPT.

Operation Block Diagram
